About

The KM271-WiFi is an addon to the (oldish) Buderus oil heating control units like the Logamatic 2107.

More details can be found on my blog or the project page.

The hardware itself is available on tindie.

The esphome component has a separate repo.

Installation

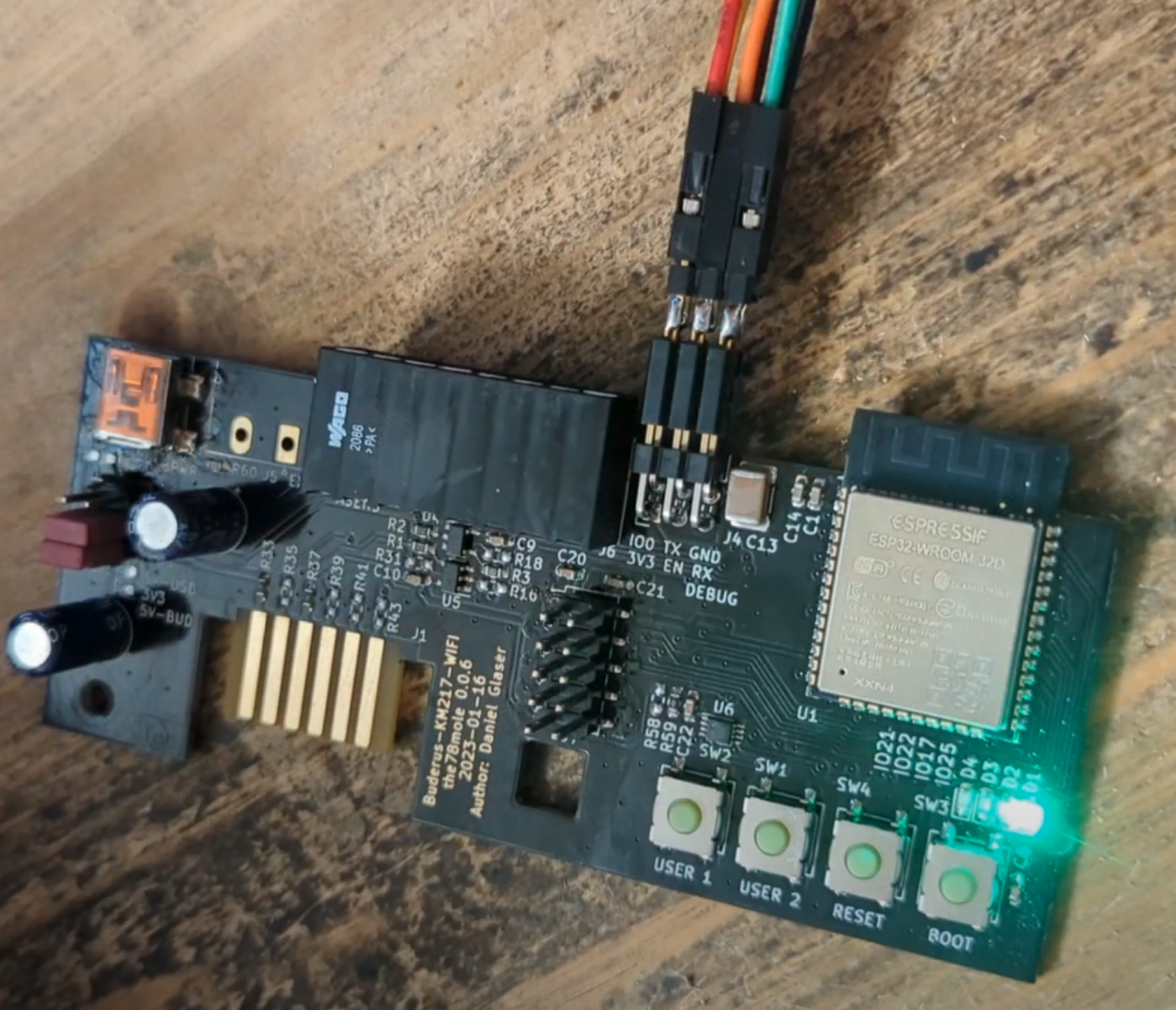

You can use the button below to install the pre-built firmware directly to your device via USB and a USB-serial converter (3,3V TTL) from the browser.

A Video, how to connect and flash the device can be found on my YouTube channel.

The IO0 and EN pins of the ESP32 don’t need to be connected to the USB-Serial converter, but then you need to enter flashing mode by pressing the buttons BOOT and RESET as shown in the video: Hold down BOOT while pressing RESET, then release BOOT again.
